Crystal growth furnaces are widely used in single crystal silicon, sapphire and other industries. In the process of preparing crystals by the Czochralski, it is necessary to apply a certain pulling force on the formed crystals when the crystals grow and rise to ensure that the crystal growth does not shift, allowing the crystal size to be controlled.

The working environment of the crystal growth furnace pulling rope is special, and the use conditions are complicated. Only by using the tungsten wire rope twisted by multiple strands of tungsten wire can the quality be guaranteed. Tungsten wire rope is made of non-sag tungsten wire, which has certain advantages in both mechanical properties and high temperature performance.

1.Raw Materials

Tungsten wire has 1) high melting point and high temperature sag resistance, which can adapt to the high temperature environment in the crystal growth furnace; 2) low vapor pressure and very few volatiles, which will not cause pollution to the prepared crystals. It is the best choice used as pulling rope in the crystal growth furnace.

The crystal growth furnace is in a vacuum environment, and the maximum temperature of the tungsten wire rope exceeds 1000 °C during operation, so the high temperature performance of the tungsten wire requires long-term stability. At the same time, the mechanical properties of the finished product are required to be good. In order to ensure the yield and efficiency in the process of winding the tungsten wire from a single wire into multiple strands at the same time, and to ensure the good high temperature stability of the wound tungsten wire rope, generally the tungsten wire does not use pure tungsten wire, but non-sag tungsten wire.

2.Features

Tungsten wire rope has high rigidity, low torsional stress, non-rotation characteristics, high temperature resistance, non-magnetic, super soft, fatigue resistance, corrosion resistance, no extension, and high tensile strength.

3.Specifications:

The specification of the early tungsten wire rope was 7*7*7, and now it has developed to the winding method of 4*19*7. Currently the most used is the 19*7 structure.

Diameter/mm

Length/mm

Structure

Load at Room Temperature/N

Load at High Temperature/N

Φ2.5

>4000

19*7

6495

2684

Φ3.0

>4000

19*7

8240

3042

Φ3.5

>4000

19*7

11249

4651

Φ4.0

>4000

19*7

15230

6308

Φ4.5

>4000

19*7

19145

7917

4.Applications:

1. Mainly used in smelting and casting, single crystal furnace equipment and other smelting industries.

2. Ultra-fine tungsten wire rope is becoming the preferred material for the production of micro-mechanical wire rope used by modern surgical robots.

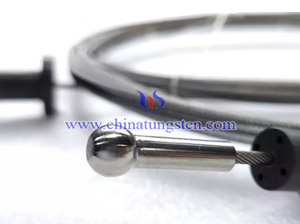

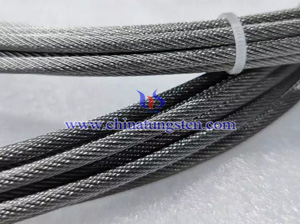

tungsten wire rope photo tungsten wire rope photo

tungsten wire rope

tungsten wire rope

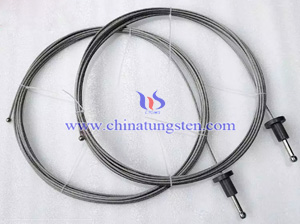

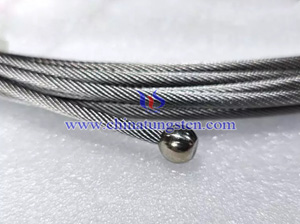

tungsten wire rope photo tungsten wire rope photo
