What's Silver Tungsten Electrode?
1.What’s Silver Tungsten Electrode?

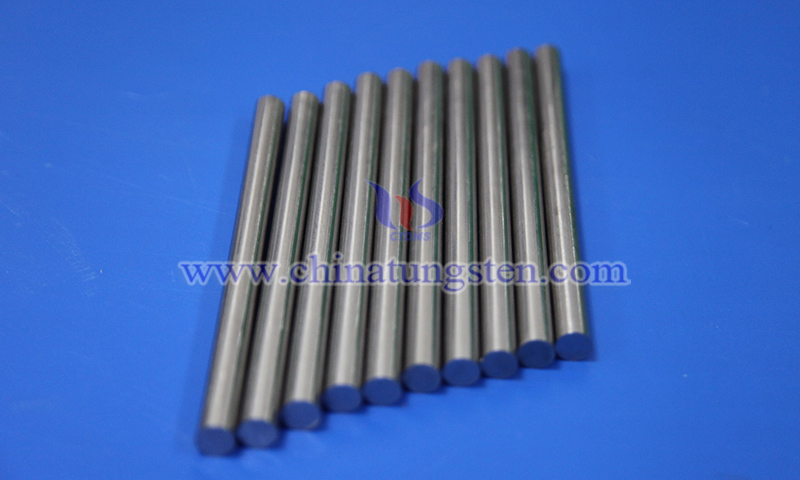

Silver tungsten electrode (AgW) is a composite electrode made of silver (Ag) and tungsten (W). Due to the significant difference in melting points and the immiscibility of silver and tungsten, the electrode cannot be produced by conventional melting methods. Instead, it is manufactured using powder metallurgy and infiltration processes. Silver tungsten electrode combines excellent electrical and thermal conductivity of silver with high melting point, hardness, and wear resistance of tungsten.
2.Features of CTIA's Silver Tungsten Electrode
(1) Excellent Arc Erosion Resistance: The tungsten framework maintains structural integrity under strong arc impact, reducing overall electrode wear.
(2) High Electrical Conductivity and Low Contact Resistance: The continuous silver phase ensures smooth current flow and reduces heat generation during operation.
(3) Anti-Welding Resistance: The surface is resistant to cold welding and fusion welding during high-current make-and-break operations.
(4) High Mechanical Strength: Compared with pure copper or silver electrodes, silver tungsten electrode offers superior wear resistance and deformation resistance under high-impact conditions.
3.Common Grades of CTIA's Silver Tungsten Electrode

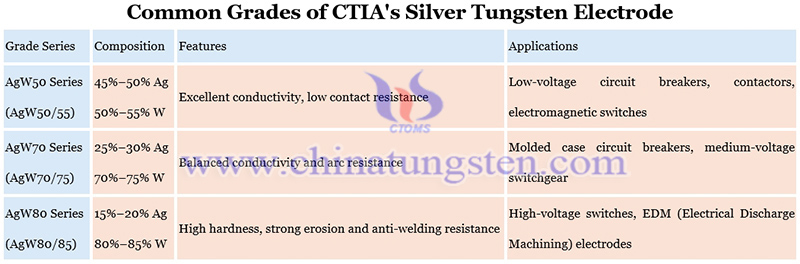

The common grades of CTIA's silver tungsten electrode are shown in picture as follows:
4.Applications of CTIA's Silver Tungsten Electrode
(1) Electrical Contact Materials: The primary application, used in high-voltage circuit breakers, air switches, molded case circuit breakers, and relay contacts.
(2) Electrical Discharge Machining (EDM) Electrodes: Used for machining cemented carbide and high-hardness steels.
(3) Resistance Welding Electrodes: Used for spot welding, seam welding, and welding of copper and copper alloys with high conductivity.
5.Specifications of CTIA's Silver Tungsten Electrode
(1) Grades: AgW30, AgW40, AgW50, AgW55, AgW60, AgW65, AgW70, AgW75, AgW80, AgW85
(2) Rods: Diameter 1.0–50 mm, length 100–300 mm
(3) Plates/Sheets: Thickness 0.5–20 mm
(4) Tubes: Outer diameter 2.0–30 mm, single or multi-hole structures available
(5) Customized Parts: Discs, blocks, threaded contacts, and composite contact assemblies
With more than 30 years of tungsten electrode manufacturing experience, CTIA GROUP provides high-quality silver tungsten electrodes and customized electrical contact solutions. Based on customer current ratings, structural requirements, and operating conditions, CTIA delivers integrated services from material selection to precision machining, meeting diverse industrial application needs.
