What's Tungsten Needle Electrode?
1.What's Tungsten Needle Electrode?

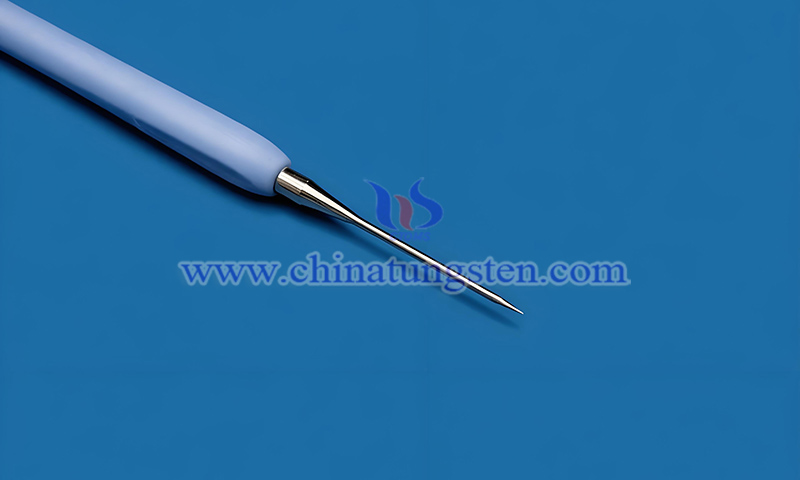

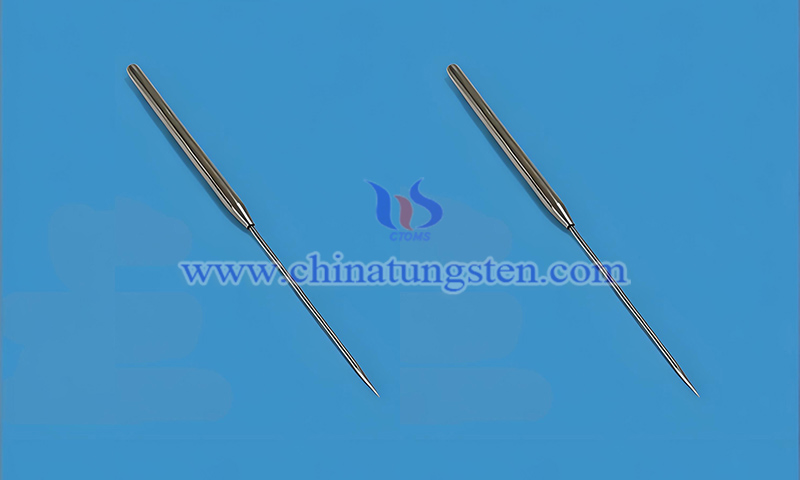

Tungsten needle electrode is a needle-shaped functional electrode manufactured from high-purity tungsten or tungsten-based alloys. It is produced through electrochemical polishing or precision mechanical grinding. The tip can be processed into micron-scale or even submicron-scale sharp structures, providing highly concentrated electric field intensity for precise current conduction and directional discharge in micro-scale areas. Tungsten needle electrode is widely used in Micro-TIG welding and minimally invasive medical electrosurgery.
2.Advantages of CTIA's Tungsten Needle Electrode
(1) Micron-Level Tip Control: High-precision electrochemical polishing and precision grinding processes ensure consistent tip geometry and sharpness, with tip diameters ranging from 0.1 to 50 μm.
(2) Highly Focused Arc: The needle-shaped structure increases electric field concentration at the tip, generating stable and concentrated micro-arcs.
(3) Stable Geometry at High Temperature: Manufactured from high-purity tungsten with purity of ≥99.95%, the tip maintains its shape and resists blunting or deformation under micro-arc conditions.
(4) Excellent Mechanical Properties: With a density of approximately 19.3 g/cm³, tungsten needle electrode offers high rigidity, wear resistance, and resistance to bending or damage during precision applications.
3.Applications of CTIA's Tungsten Needle Electrode
(1) Industrial TIG Welding: Used for precision welding and repair of integrated circuit leads, ultrafine thermocouples, and miniature molds. Rod-shaped tungsten needle electrode is used for manual TIG (Tungsten Inert Gas) welding, while pointed-tip designs are used for semiconductor probe testing.
(2) Minimally Invasive Medical Surgery: Used with high-frequency electrosurgical devices. Sharp tips, high-temperature-resistant insulation coatings, and anti-adhesion characteristics enable precise cutting and effective coagulation. Applications include thyroid surgery, general surgery, neurosurgery, cosmetic surgery, and other minimally invasive or open surgical procedures.
4.Specifications of CTIA's Tungsten Needle Electrode
(1) Tip Diameter: 0.1–50 μm
(2) Shank Diameter: 0.1–3.0 mm
(3) Length: 10–200 mm
(4) Tip Angle: 10°–90°
(5) Tip Radius: 0.01–5 μm
(6) Note: CTIA provides customized tungsten needle electrode solutions based on application requirements.
CTIA GROUP has been specializing in manufacture of tungsten electrodes for over 30 years. Backed by mature electrochemical surface treatment and micron-level precision tip-grinding technologies, CTIA offers highly customizable solutions with tip angles ranging from 10° to 90°, along with various tip diameters and taper geometries, providing customers with consistent, long-lasting tungsten needle electrodes.
