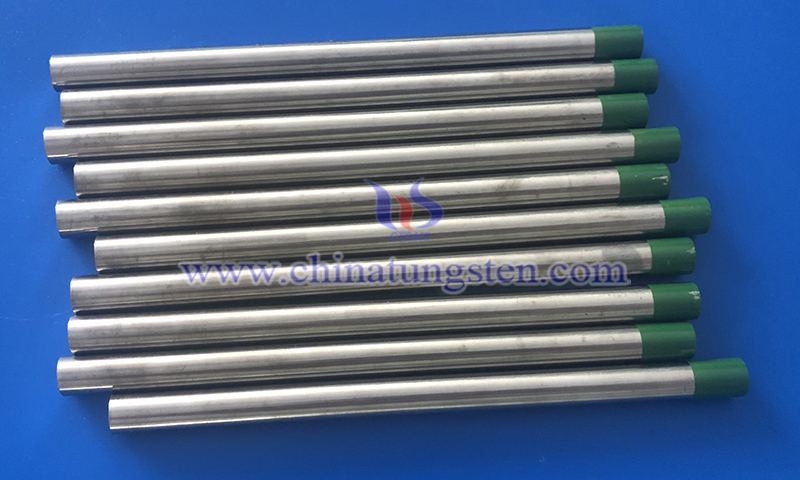

What's Ternary Composite Tungsten Electrode?
Ternary composite tungsten electrode refers to a multi-component refractory alloy electrode in which three different rare-earth oxides are uniformly doped into a tungsten matrix. These oxides typically are lanthanum oxide (La₂O₃), cerium oxide (CeO₂), yttrium oxide (Y₂O₃), and zirconium oxide (ZrO₂).
During manufacturing, CTIA precisely controls the total mass fraction of the three rare-earth oxides within 0.15%–3.0%. Through the synergistic effect of multiple rare-earth additives, the electrode achieves a balanced performance between electron emission capability and high-temperature erosion resistance, making it a long-life electrode material widely used in modern automated welding and high-field discharge applications.
The ternary composite structure leverages the synergistic effects of different rare-earth oxides to stabilize grain boundaries, enhance electron emission capability, and resist high-temperature migration. Formed as fine, dispersed particles uniformly distributed within the tungsten matrix, these rare-earth oxides effectively suppress abnormal grain growth and recrystallization, thereby improving the high-temperature structural stability of the material. Concurrently, the rare-earth elements lower the electron work function of the tungsten surface, enhancing thermionic emission efficiency to facilitate easier arc ignition and reduce required arc-starting voltage.
Ternary composite tungsten electrodes exhibit superior arc constriction stability and lower electrode erosion rates. In TIG and plasma arc welding, the electrodes provide tighter arc concentration and a significant reduction in arc wandering, which markedly improves weld bead consistency and surface quality. Under high-frequency arc-starting or continuous, long-duration welding conditions, their tip geometry retention surpasses that of single-doped tungsten electrodes, resulting in a longer service life.
Ternary composite tungsten electrodes are widely used in high-end precision welding and manufacturing, including aerospace structural component welding, nuclear equipment manufacturing, vacuum electronic device processing, and high-purity metal joining processes. In operating conditions that demand stringent arc stability, welding consistency, and heat input control, these electrodes significantly enhance process reliability and product yield.
The core advantage of ternary composite tungsten electrode lies in its balanced overall performance. Compared with single-doped tungsten electrodes, it provides more uniform performance in arc starting, arc stability, and erosion resistance, enabling adaptation to more complex welding current modes and harsher industrial environments.

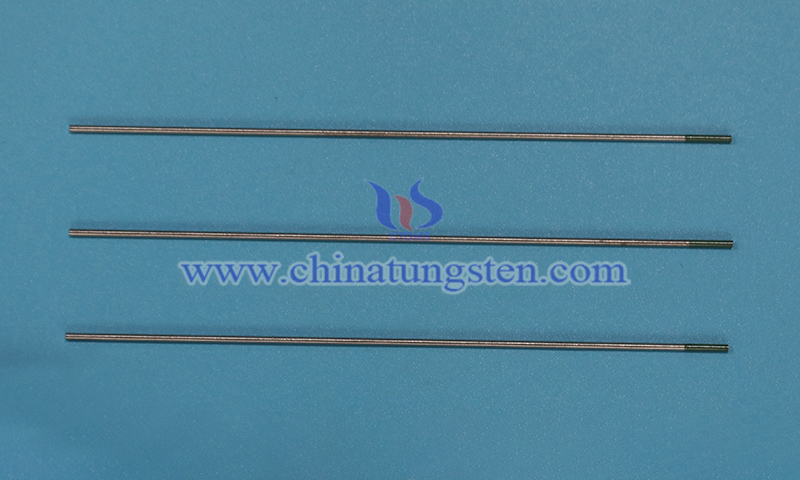

Ternary composite tungsten electrodes are available in diameters of 0.5–12.0 mm and lengths of 150 or 175 mm, with customization available for various welding equipment and applications.
With over 30 years of expertise in tungsten electrode manufacturing, CTIA GROUP delivers premium rare-earth composite tungsten electrodes. Through strict control of oxide ratios and structural uniformity, our ternary electrodes offer:
(1) Excellent arc starting and exceptional arc stability;
(2) High-temperature burn-off resistance and extended service life;
(3) Broad adaptability for aerospace, automated welding, nuclear, and high-end manufacturing.
