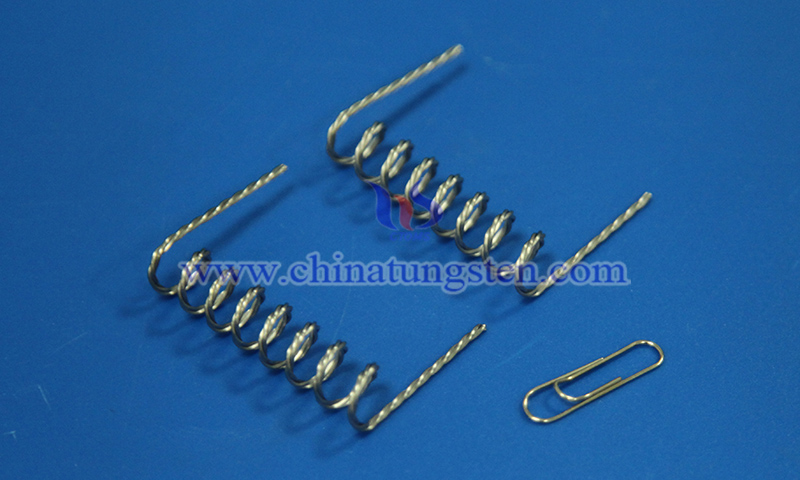

CTIA's Tungsten Heater in OLED Evaporation
CTIA's tungsten heater is a resistive heating component used to heat and evaporate organic light-emitting materials and metal electrodes during the vacuum evaporation coating of Organic Light Emitting Diode (OLED) display devices. It is precision-engineered from high-purity tungsten wire or stranded tungsten wire through specialized stranding, coiling, and surface treatment processes.
The fabrication of OLED devices relies on vacuum thermal evaporation to form organic light-emitting layers and electrode structures. As the core component of the resistive evaporation source, CTIA's tungsten heater generates a stable thermal field that allows organic and metallic materials to evaporate and deposit into thin films within a high-vacuum environment. This process is typically integrated into Physical Vapor Deposition (PVD) systems and utilized within multi-source co-evaporation configurations.
Features of CTIA's Tungsten Heater
As film uniformity and cleanliness are critical to OLED manufacturing, the stability of the heating element directly determines deposition quality. CTIA's tungsten heater delivers the following features to meet these requirements:
(1) Stable thermal field distribution, facilitating uniform evaporation across large-area substrates.
(2) Low vapor pressure, minimizing impurity sources in high-temperature vacuum environments.
(3) Doping processes that enhance structural stability during high-temperature thermal cycling.
(4) Consistent electrical resistance, allowing for precise evaporation rate control and process adjustment.

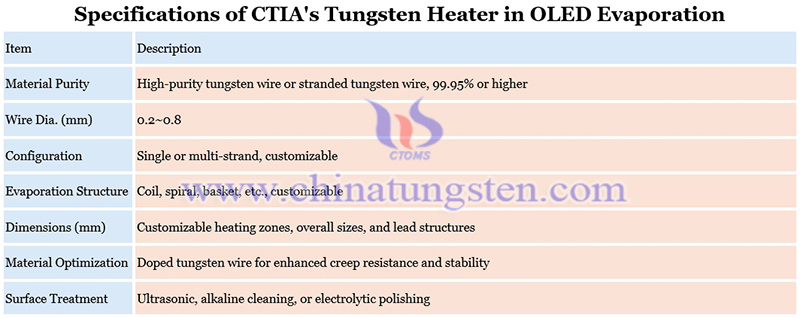

Specifications of CTIA's Tungsten Heater in OLED Evaporation
Specifications of CTIA's tungsten heater in OLED evaporation are as follows:
CTIA GROUP leverages over 30 years of manufacturing experience to deliver optimized tungsten heater solutions, specializing in the precision engineering of wire diameters, doping levels, and structural configurations. These specifications are tailored to the requirements of vacuum coating equipment, production conditions, and evaporation material characteristics. CTIA provides comprehensive end-to-end customized services covering material selection, structural design, and precision manufacturing.
For any inquiry, please contact tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: www.tungsten.com.cn
WeChat:
