CTIA's Tungsten Heater in High Temperature Sintering

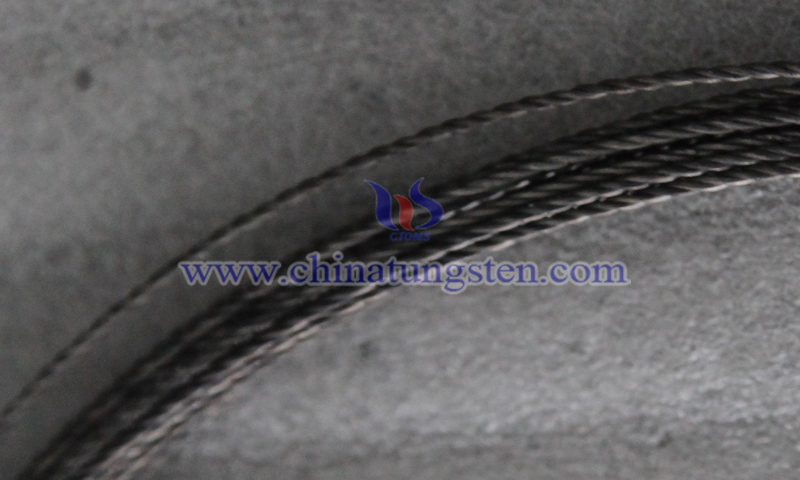

CTIA’s tungsten heater is a high-temperature resistive heater fabricated from high-purity tungsten wire or doped tungsten wire through precision stranding, coiling, forming, and vacuum high-temperature setting processes. The tungsten heating component is used in vacuum furnaces and controlled atmosphere furnaces to provide a stable thermal field for the densification of metal powders, ceramic materials, and refractory alloys. It finds extensive use in cemented carbide sintering, advanced ceramic processing, nuclear material components, and high-performance magnetic material heat treatment.
High temperature sintering requires high temperature capability, uniform thermal distribution, and long-term operational stability. CTIA’s tungsten heater offers the following advantages:
(1) High temperature resistance: With a melting point of about 3410°C, it maintains structural stability even above 2000°C, supporting continuous sintering operation.
(2) Low contamination: Low vapor pressure under high vacuum or protective atmospheres minimizes metal contamination and helps maintain material purity.
(3) Uniform thermal radiation: Stable electrical resistivity enables consistent heat distribution, reducing temperature gradients and improving densification uniformity.
(4) Long-term stability: Optimized grain structure and vacuum setting processes enhance creep resistance, resulting in minimal deformation during thermal cycling and extended service life.
Specifications of CTIA’s tungsten heater:
(1) Material: High-purity tungsten wire (≥99.95%) or doped tungsten wire
(2) Wire diameter (mm): 0.8–2.0
(3) Structure: Multi-strand precision twisted

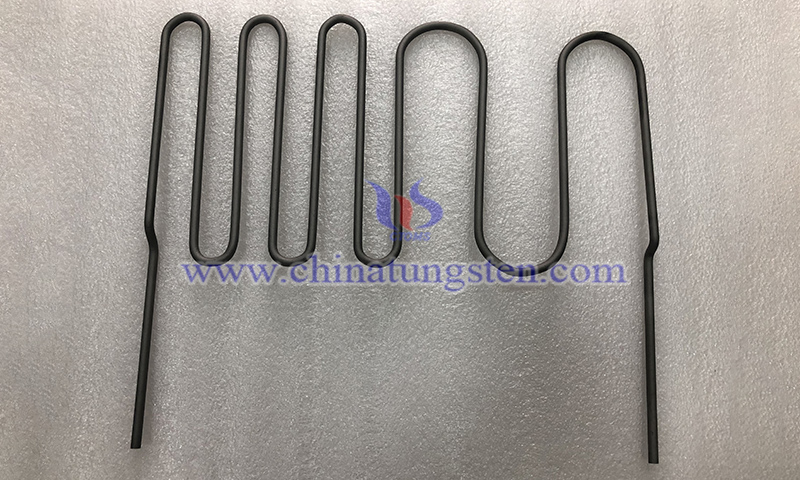

(4) Heating structure: Spiral, hairpin, cage-type, and customized geometries
(5) Surface treatment: Electrolytic polishing or alkaline cleaning
CTIA GROUP has over 30 years of experience in tungsten heater manufacturing. Based on sintering temperature profiles, furnace structure, and vacuum level requirements, CTIA optimizes tungsten wire diameter, structural configuration, effective heating length, and lead structure. Combined with suitable surface treatment processes, CTIA provides full-process customized solutions from material selection to precision manufacturing.
