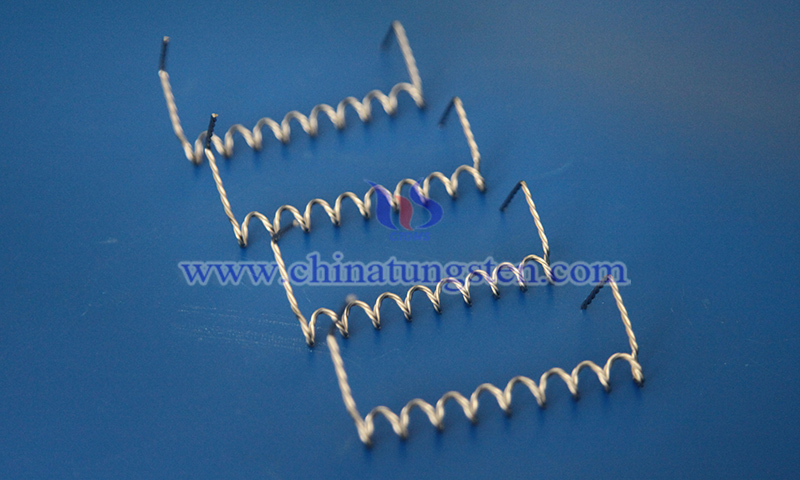

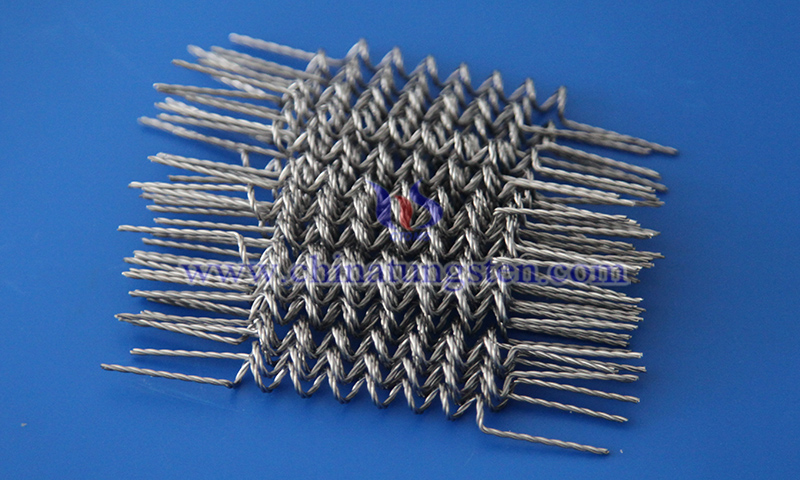

What is a Tungsten Wire Heater?
A tungsten wire heater refers to a tungsten heating element made of tungsten wire. It represents the most basic and original structural form of a tungsten heater and is also known as a tungsten evaporation wire or tungsten filament heater in some cases.
With a melting point of approximately 3422°C, tungsten wire heaters can operate stably under high-temperature conditions. In vacuum environments, the operating temperature can reach above 2000°C, making them suitable for demanding high-temperature and vacuum applications.
CTIA GROUP supplies high-purity tungsten wire (≥99.95%) with customized doping and process optimization based on application requirements, delivering enhanced high-temperature performance while maintaining material purity. After optimized processing, tungsten wire heaters demonstrate excellent dimensional stability during long-term high-temperature operation, along with strong corrosion resistance and extended evaporation service life, helping reduce replacement frequency.
During processing, tungsten wire can be bent or wound into various structures depending on application needs. When current passes through, tungsten heater heats up rapidly and provides stable thermal performance, making it suitable for precise or localized heating applications. For example, in vacuum evaporation coating, tungsten wire heaters can serve as direct evaporation sources, while in electronic devices they are commonly used as filaments or thermionic cathode structures.
Typical tungsten wire heater diameters range from 0.1 to 1.2 mm, with surface finishes including electrolytic polishing and alkaline cleaning. CTIA has over 30 years of experience in tungsten heater manufacturing and provides full-range customization, including wire diameter selection, doping type and content, structural design, effective heating length, and lead configuration. Surface treatment processes can also be applied to support precision manufacturing and complete customization from material selection to final production.
For any inquiry, please contact tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: www.tungsten.com.cn
WeChat:
More info>>
1.Tungsten heater quotation table
2. Catalog of tungsten heater
3. Tungsten heater models
4. Stranded tungsten wire for making tungsten heater
