CTIA's Tungsten Heater in Solar Cell Coating

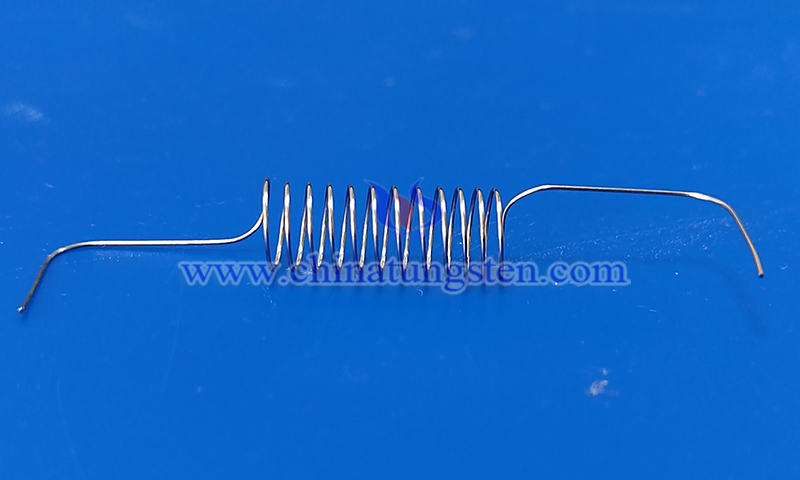

CTIA’s tungsten heater is a resistive heating element used in vacuum coating and evaporation processes for solar cell materials, enabling stable heating and controlled evaporation of metals and compounds. It is manufactured from high-purity tungsten wire through precision stranding, coiling, forming, and surface cleaning processes.
Tungsten heater is widely applied in Physical Vapor Deposition (PVD) systems to provide a stable thermal source for metal evaporation. Materials are uniformly deposited onto silicon wafers or thin-film substrates to form electrode layers, anti-reflection coatings, and functional films. It is commonly used in crystalline silicon cells, cadmium telluride (CdTe), and Copper Indium Gallium Selenide (CIGS) thin-film solar cell production, supporting stable film formation and process consistency.

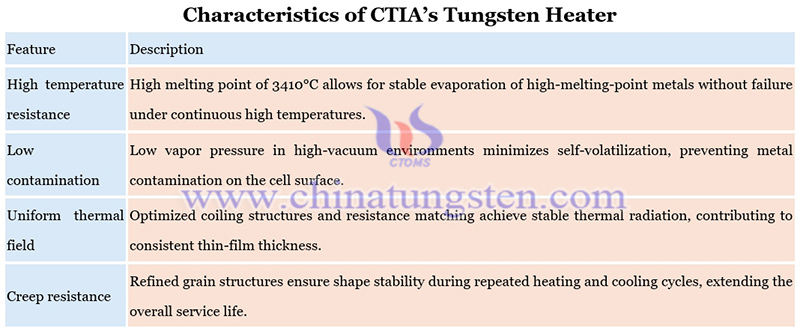

CTIA’s tungsten heater provides stable evaporation performance with high temperature resistance, low contamination, uniform thermal distribution, and good structural stability. Characteristics of CTIA’s tungsten heater in solar cell coating is as follows:
CTIA GROUP provides customized tungsten heater solutions for crystalline silicon, polycrystalline silicon, and thin-film solar cell equipment:
(1) Material: High-purity tungsten wire (≥99.95%) or doped tungsten wire
(2) Wire diameter: 0.5–1.5 mm, customizable
(3) Structure: 2-strand, 3-strand, or multi-strand twisted
(4) Evaporation geometry: U-frame, spiral, single peak, double peak, and customized shapes
(5) Surface treatment: Ultrasonic cleaning, alkaline cleaning, or electrolytic polishing
CTIA GROUP has over 30 years of experience in tungsten heater manufacturing. Based on equipment chamber design and thermal field distribution requirements, CTIA optimizes wire diameter, doping type and content, structural configuration, effective heating length, and lead structure. Combined with appropriate surface treatment processes, CTIA provides full-process customization from material selection to structural design and precision manufacturing.
For any inquiry, please contact tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: www.tungsten.com.cn
