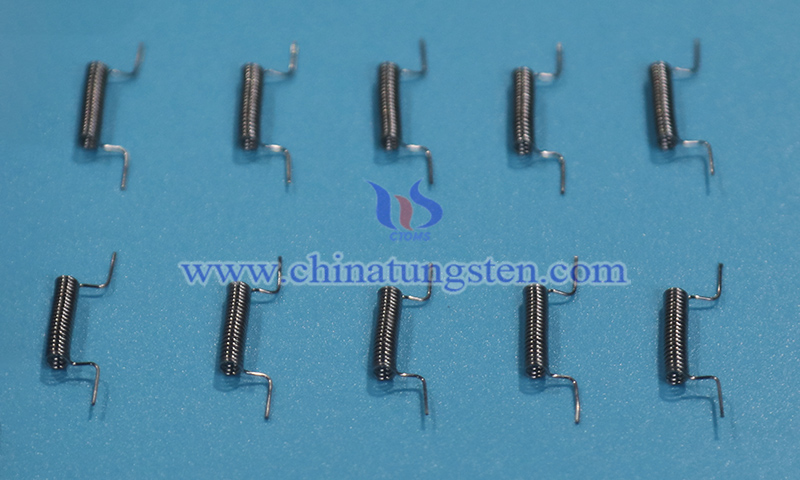

CTIA's Tungsten Heater in Rare Metal Evaporation
CTIA’s tungsten heater is a heating component used in vacuum evaporation processes for rare metals and their alloys, enabling controlled heating, melting, evaporation, and deposition. The tungsten heating element is widely applied in precision optical coating, semiconductor conductive layer fabrication, high-end jewelry vacuum coating, and laboratory material research.
Manufactured from high-purity tungsten wire or doped tungsten wire through precision stranding, coiling, forming, and surface cleaning processes, the tungsten heater serves as a stable heat source under high vacuum and high-temperature conditions. It enables uniform evaporation of rare metals such as gold, silver, platinum, and palladium, forming dense and uniform functional thin films on substrate surfaces.

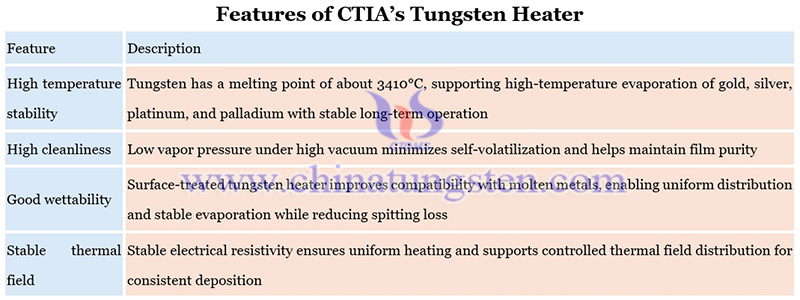

Features of CTIA’s Tungsten Heater in Rare Metal Evaporation
Rare metal evaporation demands high cleanliness and temperature stability. CTIA’s tungsten heater meets these high-precision requirements through the following features:
Specifications of CTIA’s Tungsten Heater
(1) Material: High-purity tungsten wire (≥99.95%) or doped tungsten wire
(2) Wire diameter: 0.5–1.2 mm (single wire)
(3) Structure: Multi-strand precision twisted
(4) Geometry: Spiral, basket, groove, and customized shapes
(5) Surface treatment: Electrolytic polishing or alkaline cleaning
CTIA GROUP has over 30 years of experience in tungsten heater manufacturing. Based on evaporation equipment structure, source layout, and thermal field distribution requirements, CTIA optimizes tungsten wire diameter, doping type and content, structural configuration, effective heating length, and lead structure. Combined with suitable surface treatment processes, CTIA provides full-process customized solutions from material selection and structural design to precision manufacturing.
For any inquiry, please contact tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: www.tungsten.com.cn
