CTIA's Tungsten Heater in Vacuum Electronic Devices
CTIA’s tungsten heater is a resistive heating component used in vacuum electronic devices to provide a stable heat source for the cathode or electron emission system, enabling reliable electron emission and beam output. It is fabricated from high purity tungsten wire or doped tungsten wire through precision coiling, forming, and specialized vacuum heat treatment. It is widely used in X-ray tubes, electron tubes, and microwave devices.
Working Principle of CTIA’s Tungsten Heater
The tungsten heater generates Joule heat when energized, transferring heat to the cathode material and raising it to the temperature required for thermionic emission. Electrons overcome the work function under high vacuum conditions and are emitted, then accelerated by an electric field to form a directional electron beam, enabling stable signal or energy output.
Applications of CTIA’s Tungsten Heater in Vacuum Electronic Devices
(1) X-ray Tubes: Used for cathode thermionic emission heating to generate a stable electron beam as the fundamental source for X-ray radiation.
(2) Vacuum Tubes: Used for cathode heating and electron emission control, achieving stable beam output and signal amplification.
(3) Microwave Devices: Used for electron emission and beam modulation, providing a stable electron flow for microwave signal generation.
(4) Oscilloscope Tubes: Used for electron beam generation and scanning control to enable imaging display on fluorescent screens.
(5) Scientific Vacuum Electronic Systems: Used for experimental electron emission sources and beam control research, supporting the development of novel electronic devices.
Specifications of CTIA’s Tungsten Heater
Material: High purity tungsten wire or doped tungsten wire, purity ≥99.95%
Wire diameter: 0.05~1.0 mm

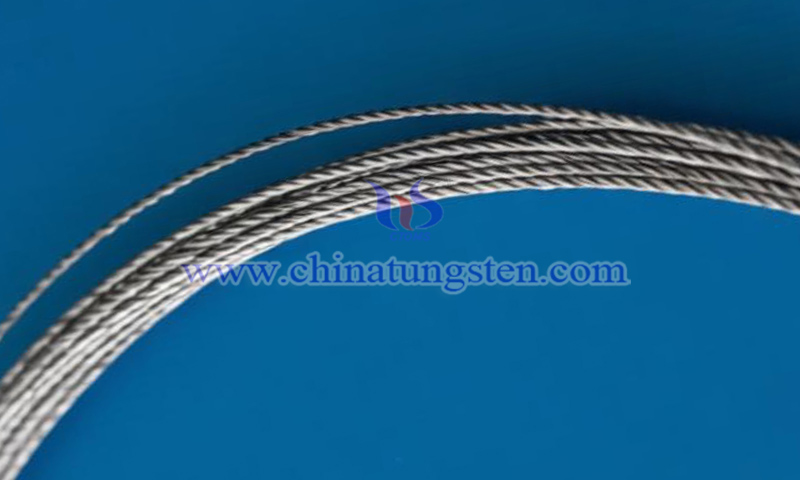

Structure: Single strand or multi strand twisted structure

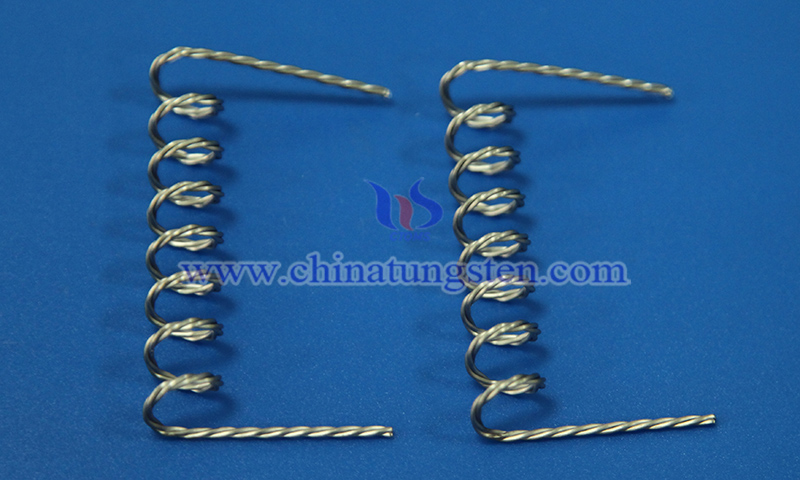

Heating geometry: Hairpin (U-type), straight, spiral, U-frame, and customized irregular geometries
Surface treatment: Electrolytic polishing or alkaline cleaning
CTIA GROUP specializes in tungsten heater technology with over 30 years of experience. Systematic optimization of wire diameter, doping type and content, structural configuration, effective heating length, and lead structure is carried out based on equipment structure, cathode type, and operating temperature. Combined with appropriate surface treatment processes, full process customized solutions are provided from material selection and structural design to precision manufacturing.
For any inquiry, please contact tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: www.tungsten.com.cn
