What Is Tungsten Evaporation Coil?
1.What Is Tungsten Evaporation Coil?

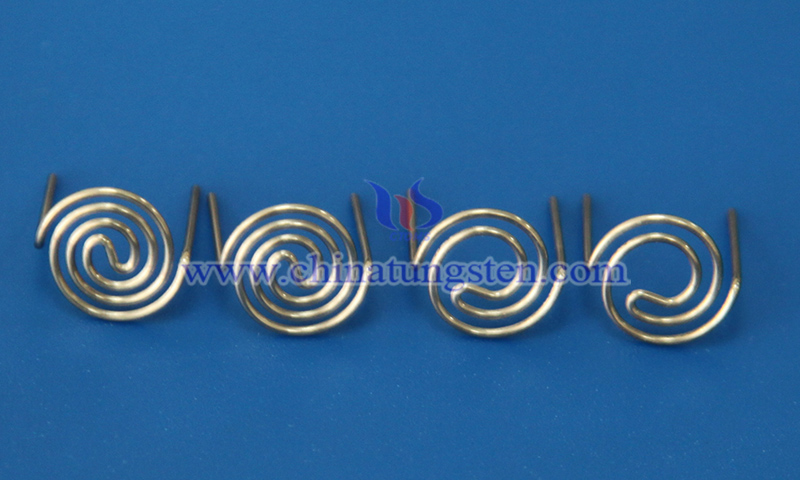

Tungsten evaporation coil, also known as tungsten coil or helical tungsten wire, is coiled tungsten heating element made from tungsten wire or stranded tungsten wire. It is typical structure of tungsten heater designed in spiral or spring form to create concentrated heating zone for vacuum evaporation applications.
2.Working Principle of Tungsten Evaporation Coil
Evaporation materials are placed inside or on surface of tungsten coil. When electrical current passes through tungsten wire, high temperature is generated rapidly, causing material to melt and evaporate. In vacuum or inert gas environment, vapor expands and deposits onto substrate surface to form uniform thin film.
3.Features of CTIA’s Tungsten Evaporation Coil
Compared with straight wire or simple structures, tungsten evaporation coils provide faster heating response, higher thermal efficiency, and more compact structure. Coiled design improves heat concentration, supports stable evaporation, reduces spattering and local overheating, and enables easy installation and replacement in industrial use.
4.Applications of CTIA’s Tungsten Evaporation Coil
CTIA’s tungsten evaporation coils are widely used in vacuum thermal evaporation and physical vapor deposition processes, including:
(1) Metallized packaging film coating for continuous production with high deposition efficiency and stable throughput
(2) Capacitor metallization to ensure stable electrical performance and consistent film quality
(3) Decorative coating applications to improve surface uniformity and visual appearance quality
(4) Optical thin film deposition to reduce particle contamination and improve film density and adhesion
(5) Laboratory vacuum evaporation systems for material testing, process development, and small batch production validation

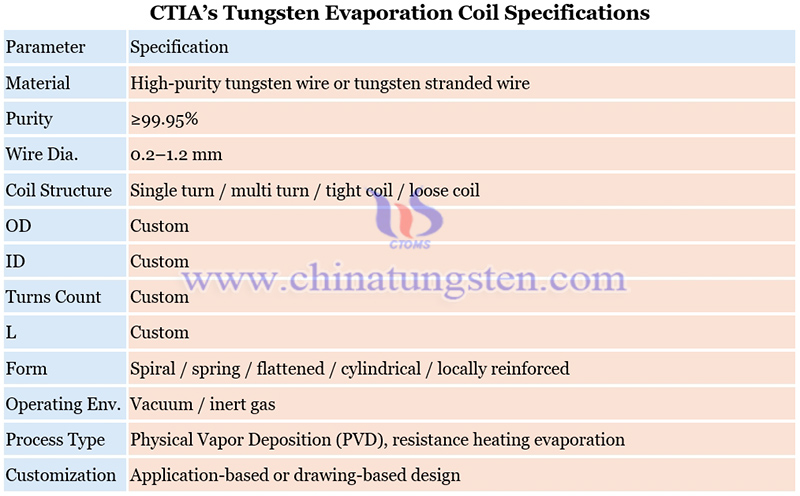

5.Specifications of Tungsten Evaporation Coil
CTIA GROUP uses high-purity tungsten wire or tungsten stranded wire with purity ≥99.95 percent. Parameters such as wire diameter, coil structure, outer diameter, inner diameter, number of turns, and length can be customized according to application requirements or drawings.
CTIA GROUP has over 30 years of experience in tungsten heating element manufacturing. Based on vacuum evaporation equipment structure and thermal field requirements, we provide customized engineering design including material selection, coil structure optimization, heating zone arrangement, connection design, and surface treatment such as electrolytic polishing or alkaline cleaning, enabling full-process customization from design to production.
