CTIA's Tungsten Heater in Decorative Coating

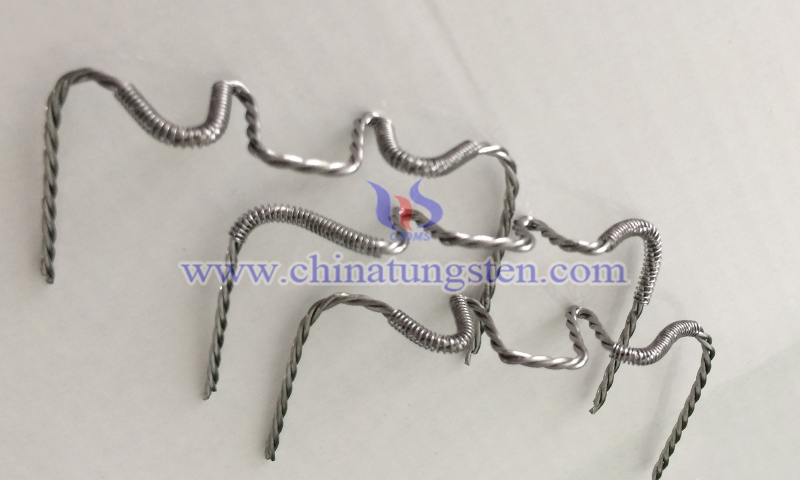

CTIA’s tungsten heater is an evaporation heating element used in decorative vacuum metallization processes to heat and vaporize metals such as aluminum, silver, gold, copper, and chromium. The tungsten heating element is fabricated from high purity tungsten wire through precision stranding, coiling, forming, and surface purification, offering excellent high temperature stability and evaporation adaptability.
The tungsten heater enables stable metal vaporization through resistive heating in a high vacuum environment, allowing uniform deposition onto substrates such as metal, ceramic, glass, or plastic. The resulting decorative metal film features high gloss, vivid color, and strong adhesion for wide applications in consumer goods, handicrafts, and product appearance enhancement.

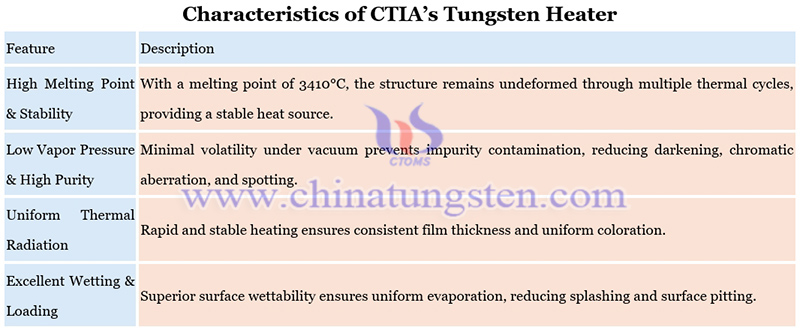

Decorative coating places strict requirements on color purity, mirror reflectivity, and surface defect control. CTIA’s tungsten heater provides stable process performance with the following characteristics:
Tungsten heater is extensively used for exterior components of daily necessities, handicrafts, cosmetic packaging, home decoration, and consumer electronics. It is primarily utilized for decorative coating on plastic or metal surfaces to grant products a high-gloss metallic texture and aesthetic upgrade. Common applications include metallization treatments for high-end jewelry, watch components, smartphone frames, cosmetic caps and housings, lamp reflectors, and daily hardware, effectively enhancing visual appeal and added value.
CTIA GROUP provides a wide range of customizable tungsten heater specifications tailored to different vacuum coating applications:
Material: High purity tungsten wire or doped tungsten wire, purity ≥99.95%
Wire diameter: 0.5~1.2 mm
Structure: Multi strand twisted
Geometry: Hump (single peak or double peak), U-frame, funnel (tungsten basket), and customized geometries
Surface treatment: Electrolytic polishing or alkaline cleaning
CTIA GROUP specializes in tungsten heater technology with over 30 years of experience. Systematic optimization of wire diameter, structural configuration, and heating zone design is carried out based on vacuum coating equipment architecture, decorative material properties, and thermal field distribution requirements. Full process customization is provided from material selection to precision manufacturing.
For any inquiry, please contact tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: www.tungsten.com.cn
