Z-Type Tungsten Heater
What Is a Z-Type Tungsten Heater?

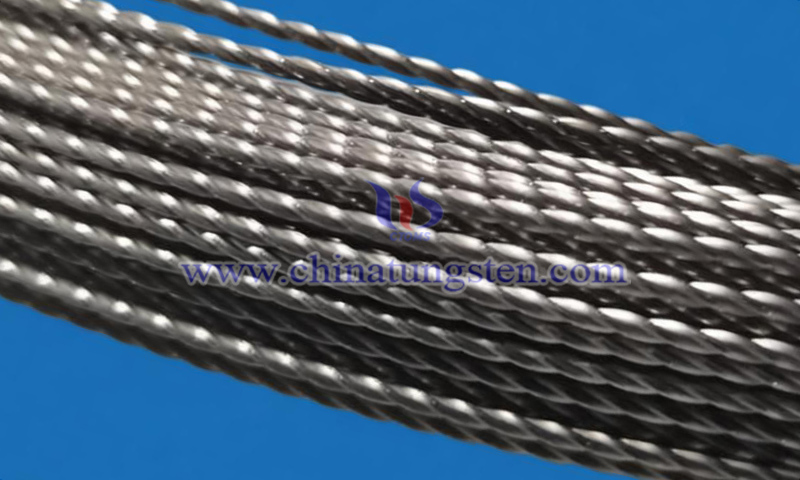

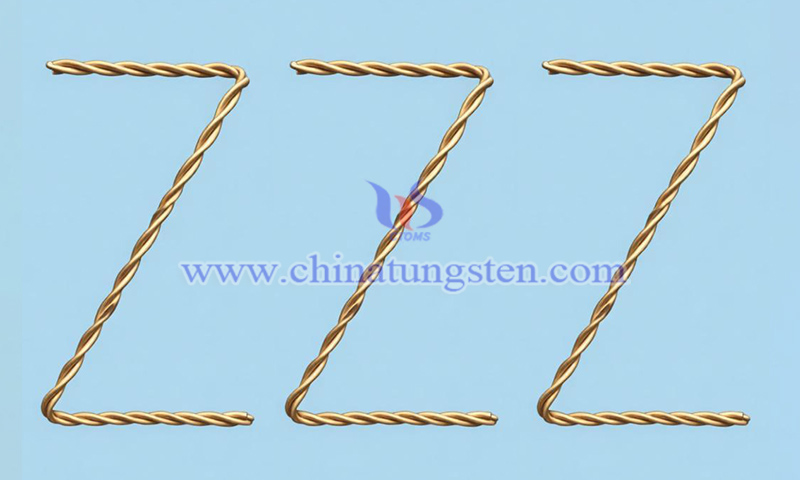

A Z-type tungsten heater is a tungsten heating element formed by bending high-purity tungsten wire or doped tungsten wire into a Z-shaped structure. Its folded geometry extends the effective heating path within limited space, improving resistance distribution uniformity and localized heating performance.
Advantages of CTIA’s Z-Type Tungsten Heater
(1) Directional thermal field distribution: Alternating right-angle or obtuse-angle bends create a stepped heating profile with alternating straight and angled segments, enabling directional heat control suitable for strip or localized heating.
(2) Strong material retention: Bend points act as physical barriers, restricting molten metal flow along the axis and maintaining stable evaporation positions.
(3) High space utilization: Compact geometry allows longer tungsten wire within limited space, achieving higher power output.
(4) Structural stability: Multi-segment bends distribute thermal stress, reducing deformation and improving long-term operational stability.
Applications of CTIA’s Z-Type Tungsten Heater
(1) Continuous coating of strip substrates: Used in roll-to-roll Physical Vapor Deposition (PVD) systems for uniform coating of continuously moving films or metal strips, enabling stable deposition processes.
(2) Inner wall coating of tubular components: Applied in long tube internal coating via insertion or rotational evaporation, achieving uniform film coverage inside cylindrical structures.
(3) Precision resistor manufacturing: Used in thin-film deposition of resistive materials such as nickel-chromium alloys, ensuring consistent resistance distribution and stability.
(4) Special optical window coating: Used for non-circular substrates such as rectangular optical windows, ensuring uniform evaporation and consistent film coverage.
Z-type tungsten heater is preferred for long strip-shaped workpieces, limited installation space requiring high power density, or applications demanding high thermal stability and positional retention under high temperatures.
CTIA GROUP, with over 30 years of expertise in tungsten heater manufacturing, provides advanced engineering design and precision manufacturing solutions. Based on applications, operating temperature, and power requirements, CTIA optimizes key parameters including tungsten wire diameter, strand count, Z-segment length, leg spacing, coil diameter, overall length, and bending angle, and integrates surface treatments such as electrolytic polishing and precision cleaning to deliver full-process customized solutions from design to final delivery.
