CTIA's Tungsten Heater in High Purity Material Evaporation

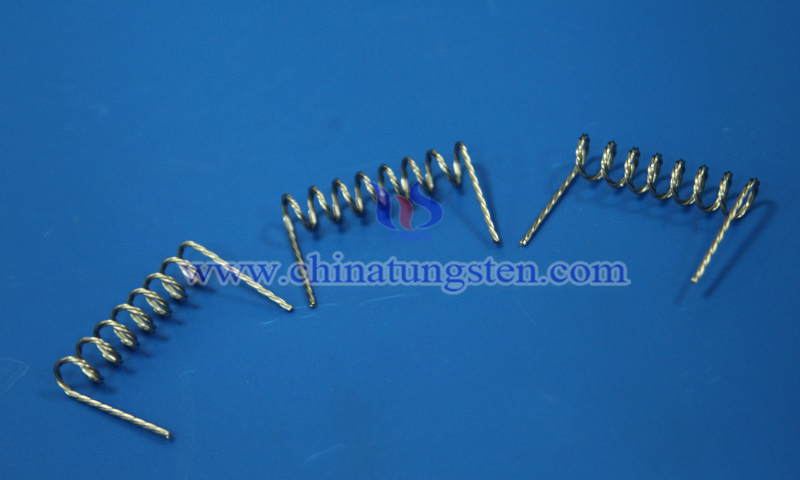

CTIA’s tungsten heater is a high-purity thermal source used in ultra-high vacuum evaporation equipment to heat high purity material such as metals or semiconductor materials, enabling low-contamination and high-cleanliness thin film deposition. The tungsten heater is fabricated from high-purity tungsten wire through precision stranding, coiling, forming, and multi-stage surface chemical purification processes.
High purity material evaporation requires exceptional cleanliness and thermal stability. Outgassing behavior and material purity of the heating component directly affect film quality. CTIA’s tungsten heater uses tungsten wire with a purity of ≥99.95% as the base material to minimize impurity introduction at the source. Degassing and surface purification treatments further reduce outgassing and contamination in vacuum environments. A high melting point of about 3410°C ensures structural stability under high temperatures, maintaining a uniform thermal field. Surface condition optimization also improves wettability and adhesion of molten materials, enabling more stable evaporation and better deposition consistency.
Tungsten heater is widely used in quantum device fabrication, superconducting thin film research, advanced semiconductor processing, and high-end optoelectronic material production, providing a stable heat source for high-purity thin film deposition and precision functional layer formation.
Specifications of CTIA’s Tungsten Heater:
Material: High-purity tungsten wire with purity ≥99.95%
Wire diameter: Single wire, 0.2–1.0 mm
Stranding: single, 2-strand, 3-strand, or 4-strand precision twisted
Geometry: Coil, basket, groove, and customized shapes
Surface treatment: Electrolytic polishing or alkaline cleaning
CTIA GROUP leverages over 30 years of manufacturing experience to deliver optimized tungsten heater solutions. These comprehensive services cover material selection, structural design, and precision fabrication to meet the specific vacuum architectures and thermal field requirements of global high purity material evaporation production environments.
